DESCRIPTION

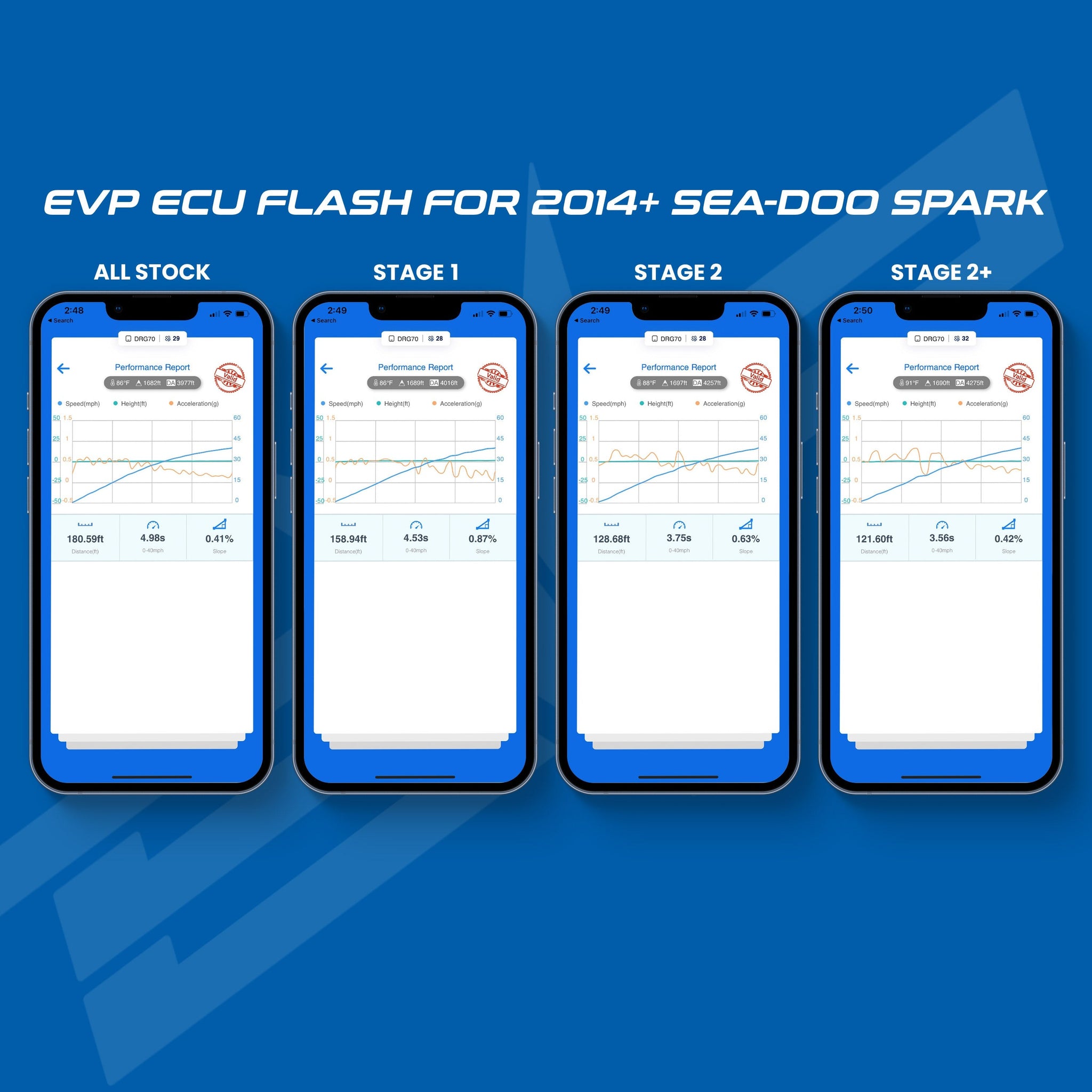

| ECU FLASH STAGE | RPM | 30 ft. | 60 ft. | 100 ft. | 150 ft. | 300 ft. | 0-40 mph | TOP SPEED |
| Stock 60HP | 6800 |
1.68 | 2.59 | 3.57 @ 25mph | 4.64 | 7.47 @ 37mph | 9.30 @ 387 ft. |
N/A |
| Stock 90HP | 7800 | 1.56 | 2.37 | 3.23 @ 29mph | 4.16 | 6.64 @ 42mph | 4.98 @ 180 ft. | 48mph |
| EVP Stage 1* | 7800 | 1.62 | 2.42 | 3.26 @ 30mph | 4.17 | 6.51 @ 45mph | 4.53 @ 158 ft. | 50mph |
| EVP Stage 2 | 7950 | 1.42 | 2.18 | 2.98 @ 31mph | 3.84 | 6.11 @ 47mph | 3.56 @ 121 ft. | 51mph |
| EVP Stage 2+* | 8000 | 1.43 | 2.17 | 2.96 @ 31.5mph | 3.81 | 6.04 @ 47.5mph | 3.56 @ 121 ft. | 52mph |
*STAGE 1 TUNE DISCLAIMER: After the increased power of the stage 1 tune, the OEM impeller is inefficient and the ski severely cavitates upon launch, which significantly impacts the performance on paper. The solution is adding the Solas Concord Series 12/14 Impeller, which will eliminate cavitation while adding more performance.
*STAGE 2+ Is tune, Impeller, and EVP V-Flow Ribbon Delete (Ribbon Delete sold separately)
- All runs done at 1500ft elevation in 85°-95° ambient temperatures with a 225-lb. rider.
Package contents

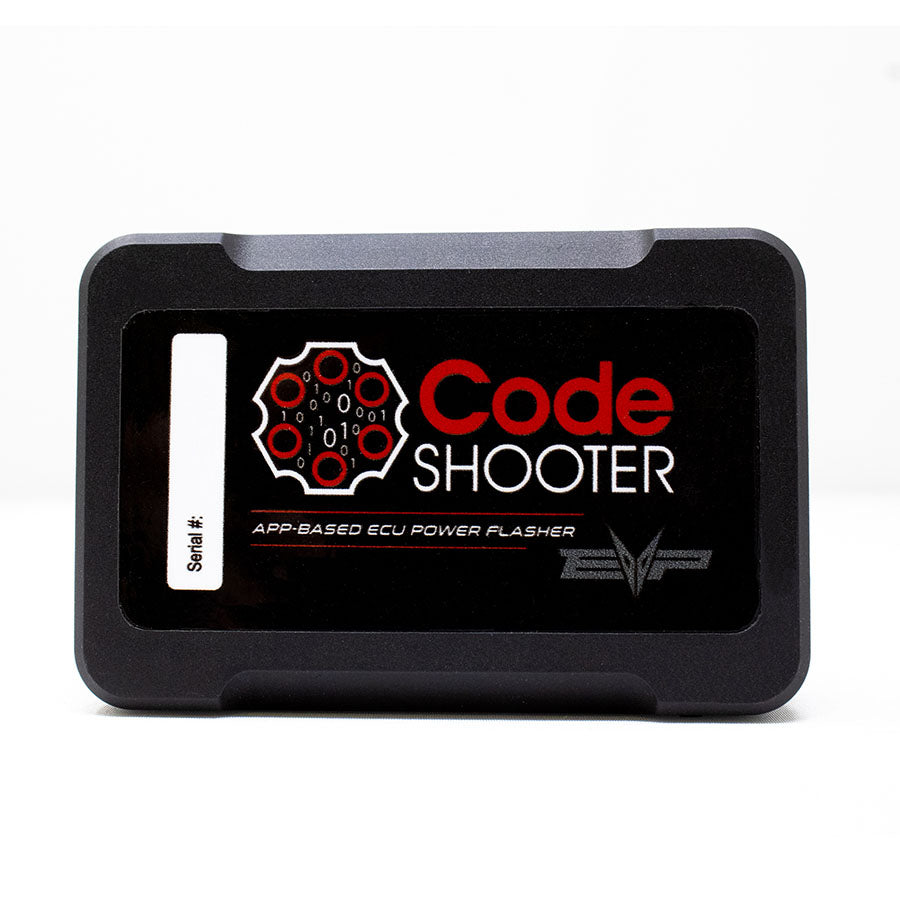

- STAGE 1: EVP Spark tuning file only. (Optional: EVP CodeShooter flashing device)
- STAGE 2: EVP Spark tuning file plus Solas 12/14 Impeller. (Optional: Solas Stainless Steel Wear Ring and EVP V-Flow Ribbon Delete)
EVP SPARK TUNING FEATURES:
- Higher top speed
- Improved throttle response and acceleration
- Raised rpm range and rev limiter
- Optimized ignition and fuel delivery for immediate power
FITMENT
2014-2024 Sea-Doo Spark Models
INSTRUCTIONS

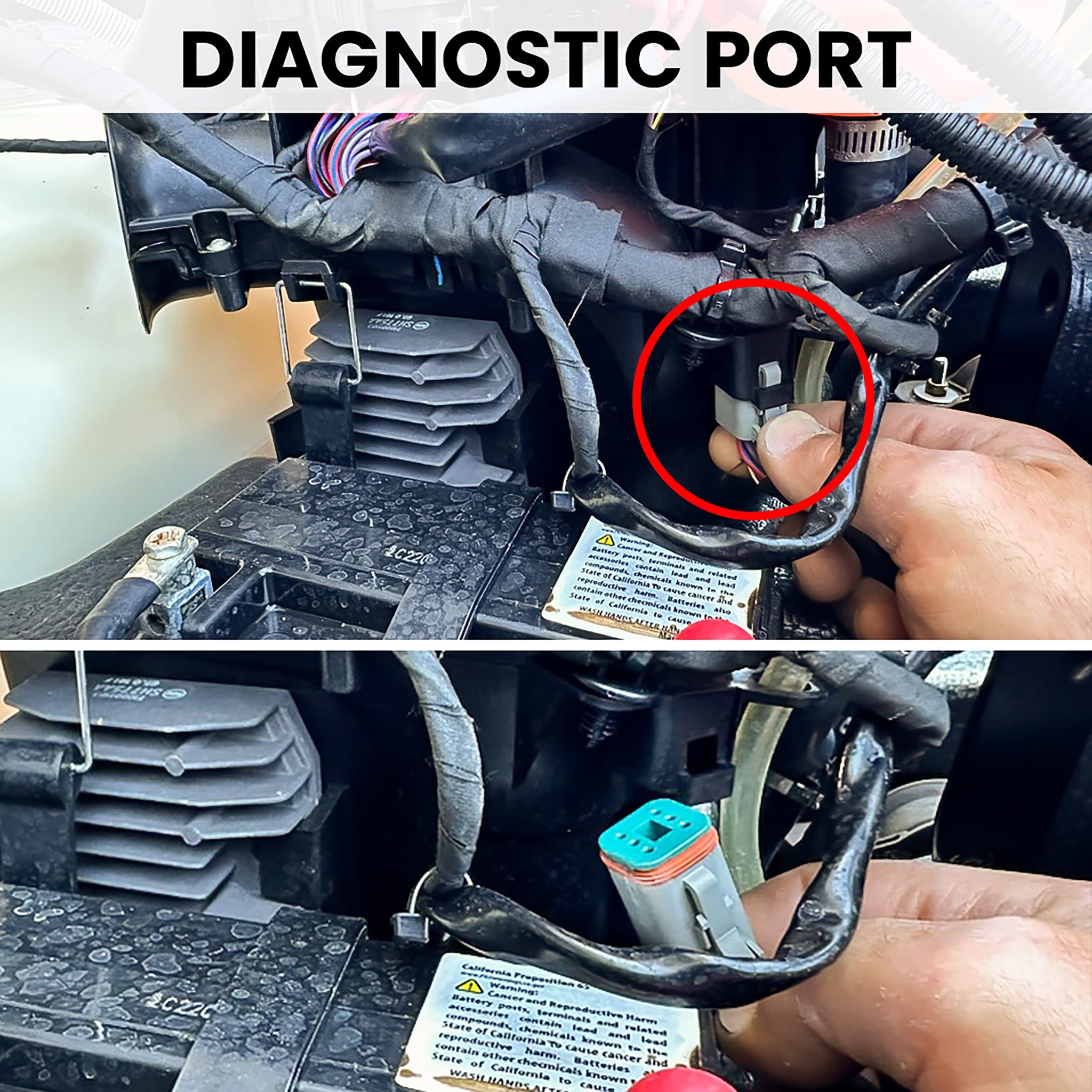

SEA-DOO SPARK DIAGNOSTIC PORT LOCATION
SEA-DOO SPARK IMPELLER INSTALL
Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.
