DESCRIPTION
PLEASE NOTE: An EVP CodeShooter or Maptuner Flashing Device is required for all Paragon Turbo Systems.

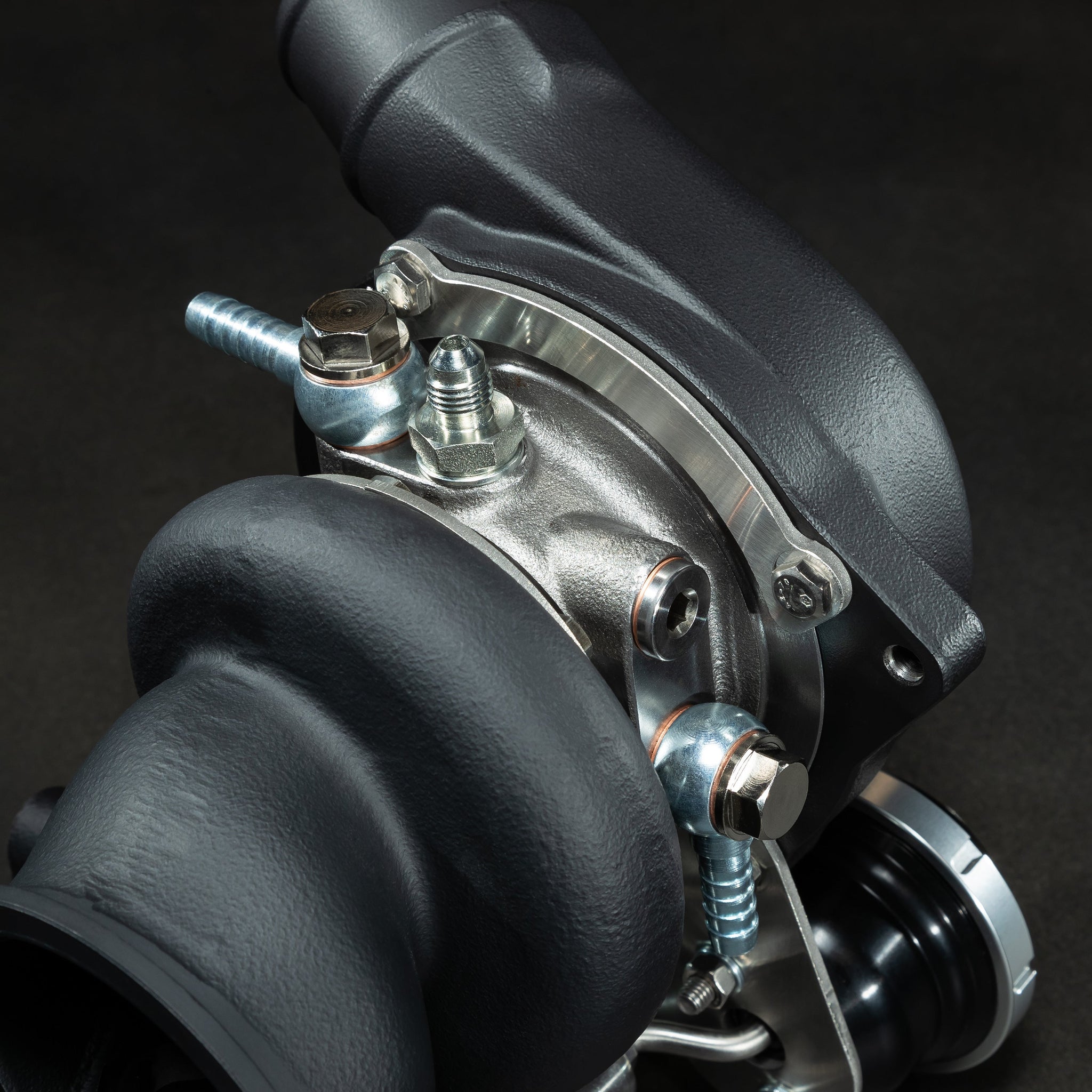

- Rotating assemblies VSR balanced at over 100,000 RPMs.
- Ceramic-coated exhaust housings to retain exhaust velocity and reduce radiant heat.
- Color-anodized compressor wheels and powder-coated compressor housings.

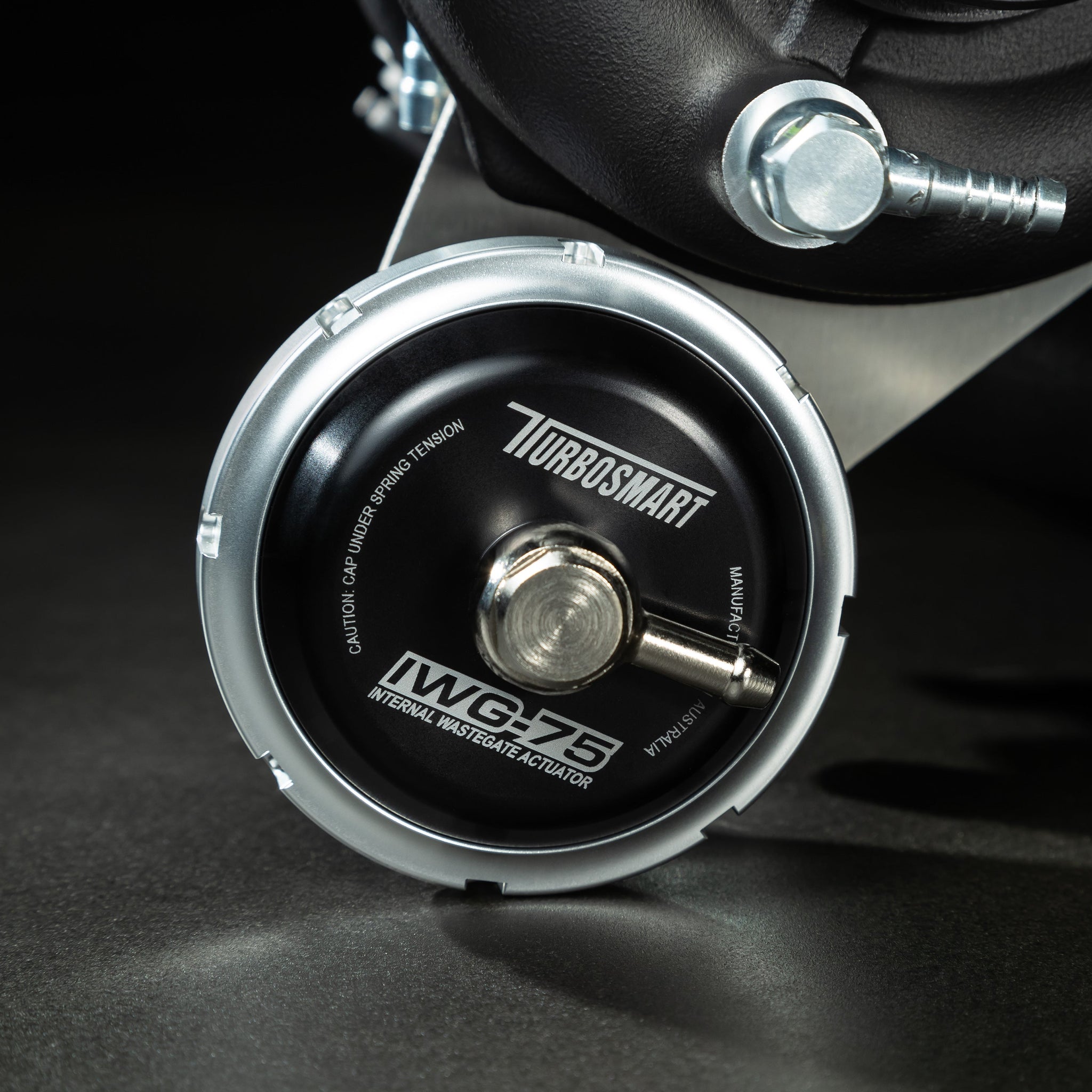

- Internally wastegated with Turbosmart wastegate actuator and adjustable turnbuckle.
- Each turbocharger is serialized and includes a 6-month warranty.

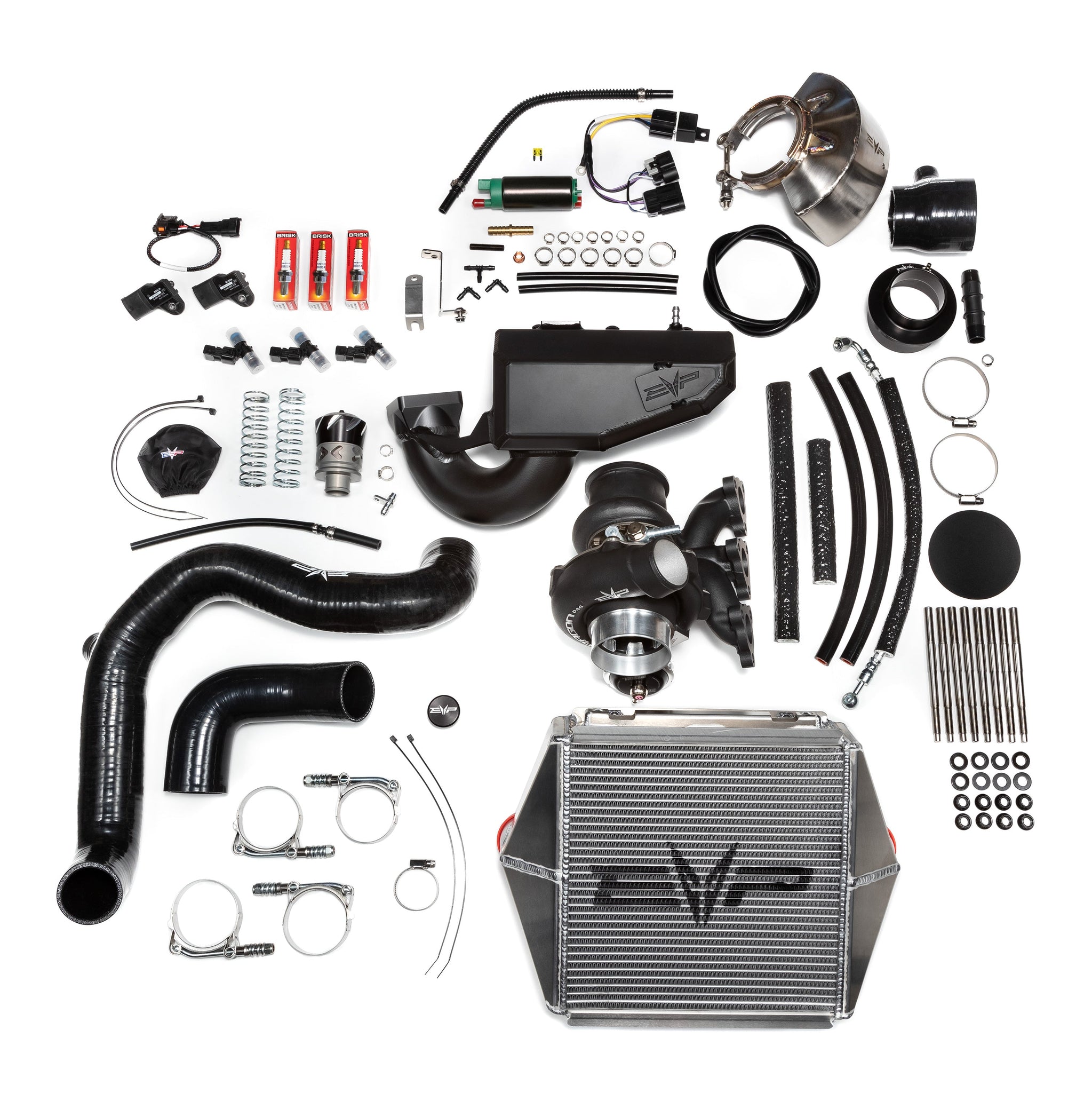

PARAGON P46-357 KIT INCLUDES:
- EVP X3 Blow Off Valve 2.0 (BOV) Kit
- EVP 2017-'19 X3 Paragon Charge Tube Kit
- EVP 2017-'19 X3 Turbo Race Intercooler
- EVP Torrent-F Intake Plenum, Black Ceramic
- EVP 2017-'19 X3 Paragon V-Flow Intake Kit
- EVP 340LPH Fuel Pump Kit for X3
- EVP 2017-'19 X3 1300CC Injectors (Set Of 3)
- EVP 4 Bar MAP Sensor Kit for X3

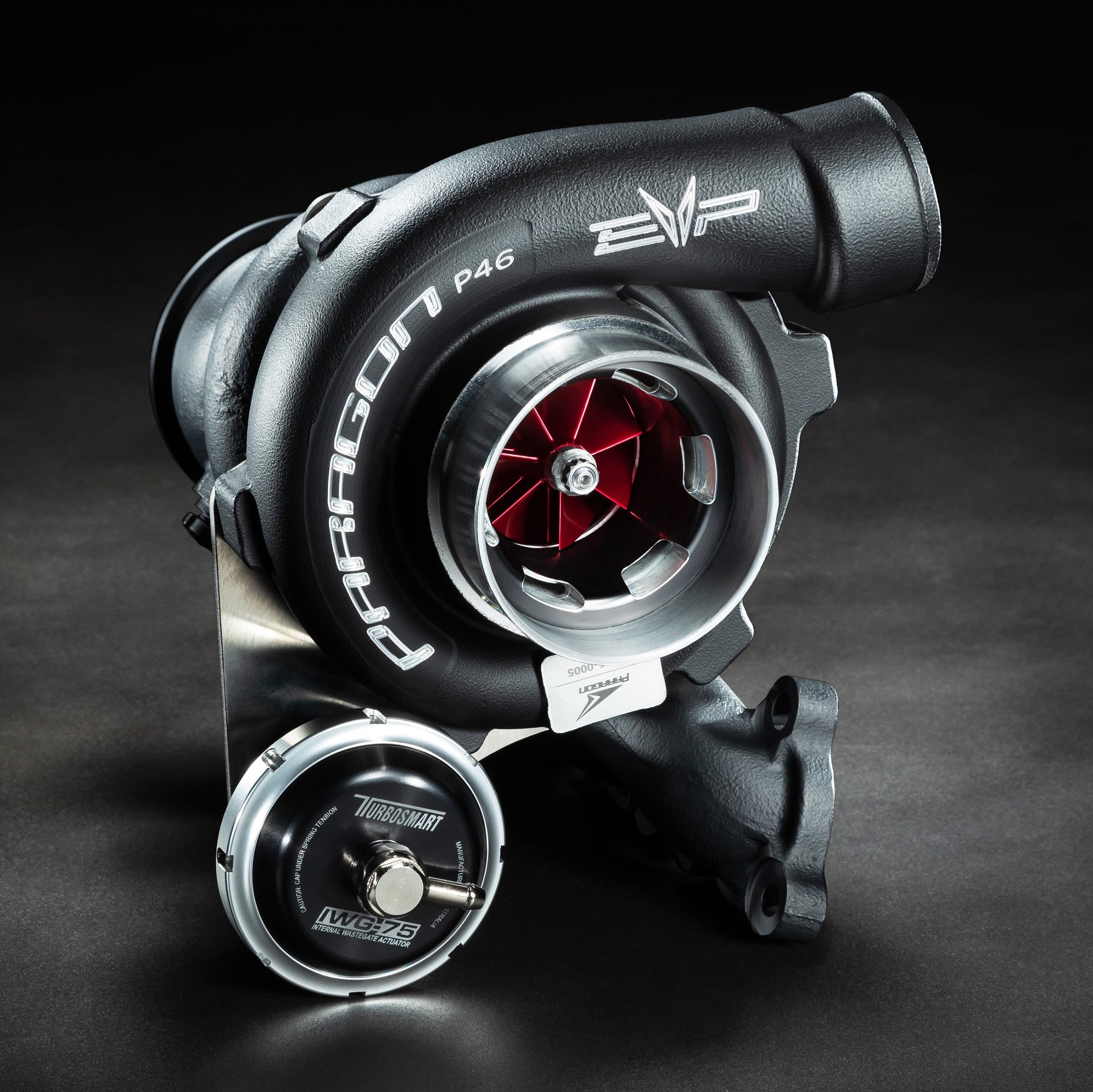

- EVP X3 ME17 Paragon 46/42 Red Turbocharger Assembly
- EVP XR Series Custom age 625 Head Stud Kit 9MM-10MM
- Maverick X3 Turbo Replacement Spark Plugs
- Full hardware kit for installation
Do you already own an EVP part from this turbo kit? If so, contact EVP to custom build your order at (715) 247-3862 or givemepower@evopowersports.com.
EVP DISCLAIMER: CLUTCHING YOUR VEHICLE IS MANDATORY WITH ALL EVP TURBO SYSTEMS. IT IS UP TO THE CUSTOMER TO ENSURE THE VEHICLE IS EQUIPPED WITH THE PROPER CLUTCHING REQUIREMENTS. TO SHOP CLUTCHING FOR YOUR VEHICLE, PLEASE CLICK HERE.

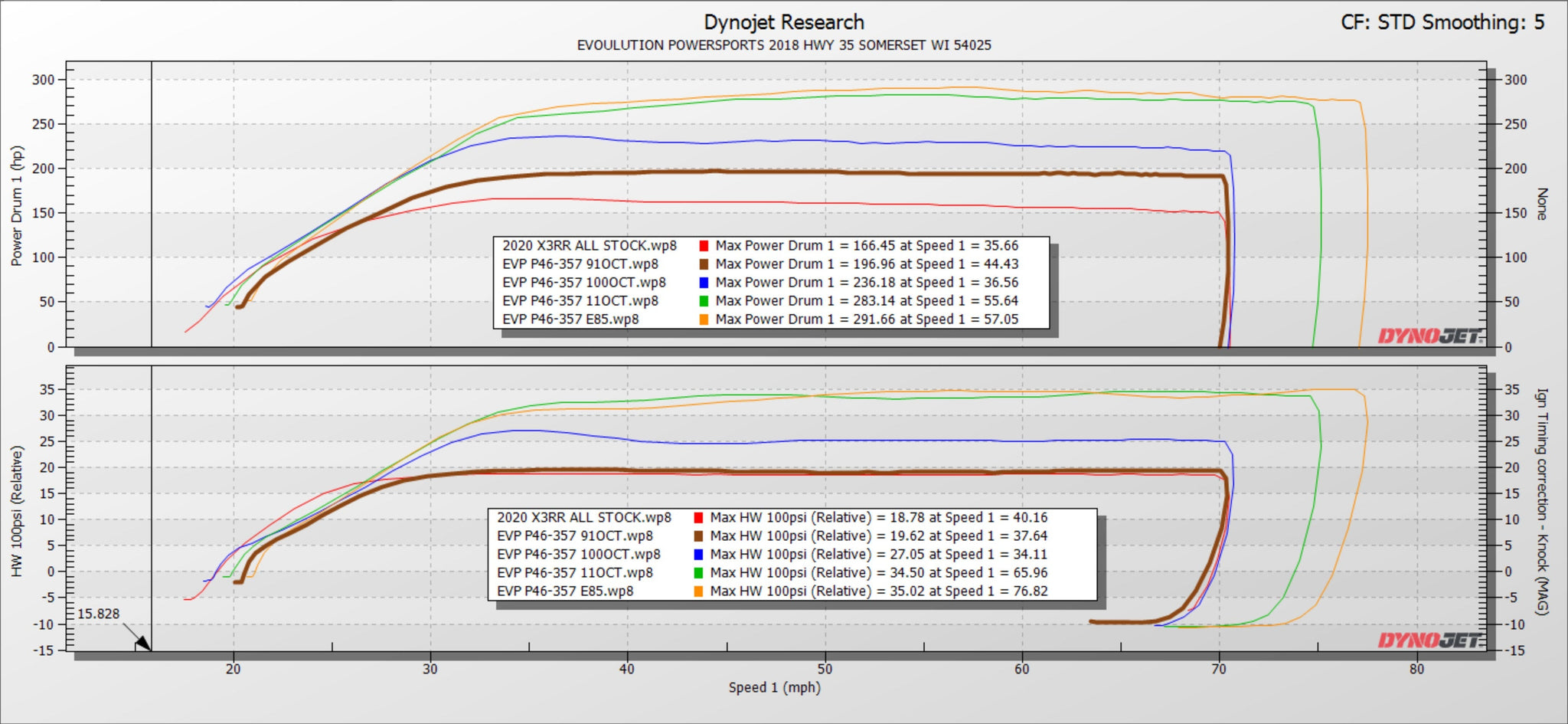

| POWER LEVEL: P46-357 | ||||
|---|---|---|---|---|
| FUEL TYPE | Boost (PSI) | WHP | CHP (approx) | AVAILABLE LAUNCH RPM |
| 91 | 19 | 190 | 230 | 2600, 2800 |
| 100 | 25 | 230 | 282 | 2600, 2800, 3000 |
| 110 | 34 | 282 | 343 | 2800, 3000, 3300, 3600, 4000, 4500 |
| E85 | 34 | 291 | 356 | 2800, 3000, 3300, 3600, 4000, 4500 |
FITMENT
2017-'19 Can-Am Maverick X3 Turbo & Turbo R
INSTRUCTIONS
P46-357 Turbo System for 2017-'19 Turbo/R
Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.
